DFRobot - MiniQ Motor Wheel Set with Encoder
£11.78
£9.82
SKU
DF-KIT0015
Introduction
This MiniQ motor wheel set is especially designed for education and hobbies. It features a powerful metal gear motors which provide a speedy robot. With buildin encoders, it can do PID speed control which is Ideal for maze competition and education purpose.Easily for assembling to the chassis.You can drive this robot with our Romeo (an Arduino Robot Control Board with Motor Driver),or other motor drivers.
Specification
- Encoder Specification
- Working Voltage:3.3V or 5V
- Working Current:
- Pulse Output:48 per revolution
- Compatibility:42mm x 19mm (1.65x0.75") wheel
- Motor Specification
- Motor Speed: 290 + 10% rpm@6V
- Gear Ratio: 75:1
- Rated Speed: 220 + 10% rpm@6V
- Rated Current: 50mA@6V
- Stall Current: 1000mA@6V
- Stall Torque: 0.8kg*cm@6V

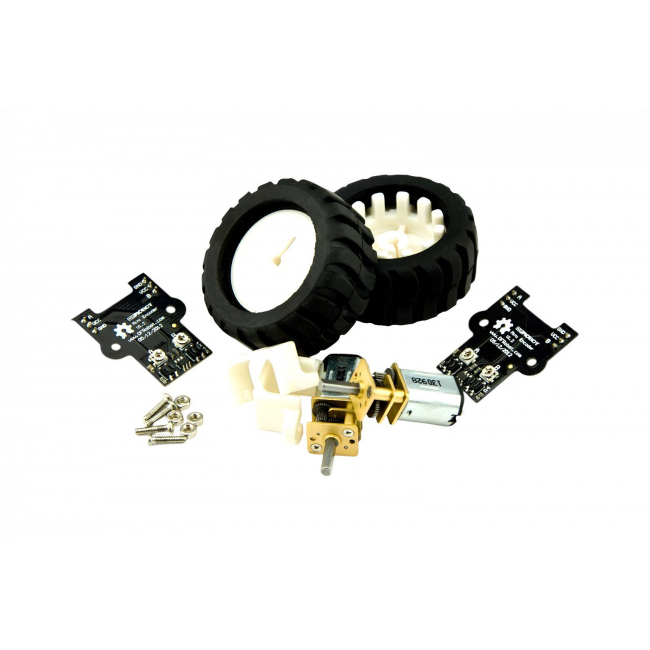

Shipping List
- Micro Metal Gear Motor with Connector (75:1) (SKU:FIT0457) x2
- Rubber Wheels (SKU:FIT0085) x2
- Pair Motor brackets (SKU:FIT0160) x1
- Encoders (SKU:SEN0116) x2
| Manufacturer | DFRobot |
|---|
