DFRobot - XH2.54 Connector Kit (2.5mm, 0.1")
£4.99
£4.16
This kit worked great to comlete my project. Would be great if it came with a crimper.
SKU
DF-FIT0255
Introduction

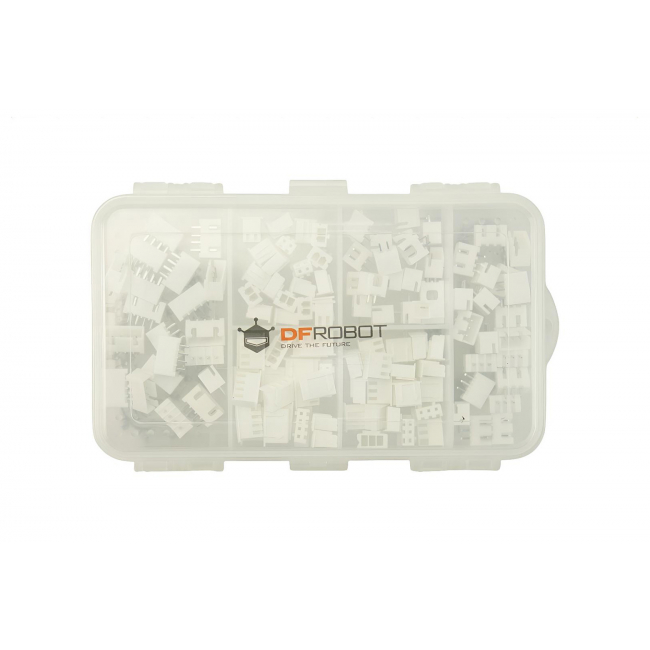

This kit includes XH-2, XH-3, and XH-4 housing (20 units each), through-hole type shrouded header (20 units each), and crimp contact (100 units).
Specification
- Current rating:3A AC,DC (AWG #22)
- Voltage rating:250V AC,DC
- Temperature range：-25℃ to +85℃（including temperature rise in applying electrical current）
- Contact resistance： Initial value/10m Ω max.
- After environmental testing/20m Ω max.
- Insulation resistance：1000M Ω min.
- Withstanding voltage：1000V AC/minute
- Applicable wire：AWG#30~#22
- Applicable PC board thickness：1.6mm (0.06")
Shipping List
- 2.5mm (0.1") XH-2 housing x20
- 2.5mm (0.1") XH-3 housing x20
- 2.5mm (0.1") XH-4 housing x20
- 2.5mm (0.1") B2B-XH-Athrough-hole type shrouded header x20
- 2.5mm (0.1") B3B-XH-Athrough-hole type shrouded header x20
- 2.5mm (0.1") B4B-XH-Athrough-hole type shrouded header x20
- crimp contact x100
- Two-sided Compartment Parts Box x1
| Manufacturer | DFRobot |
|---|
