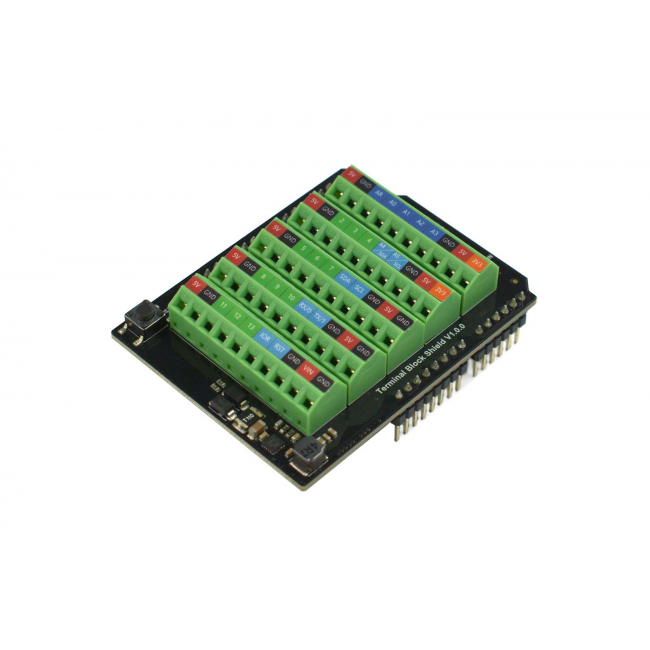

DFRobot - Terminal Block Shield for Arduino

Has it ever happened to you that you spent a lot of time ascertaining a problem when making projects and finally found out it was just caused by loose wiring? Then, what you may need is a terminal block shield like this!

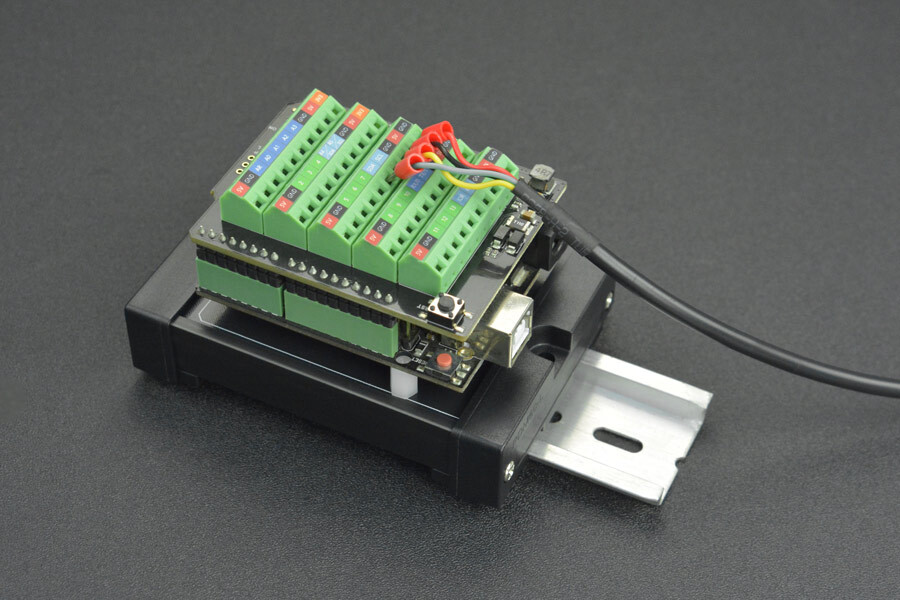

The shield adopts terminal blocks to secure wires so as to make connections stable and reliable. And multiple 3.3V, 5V, and GND ports are provided for easy wiring. It can be powered by 7~24V voltage without an additional buck-down circuit. With a reasonable layout and taller pin headers, this terminal block shield works well with Arduino UNO Ethernet Shield.

Application

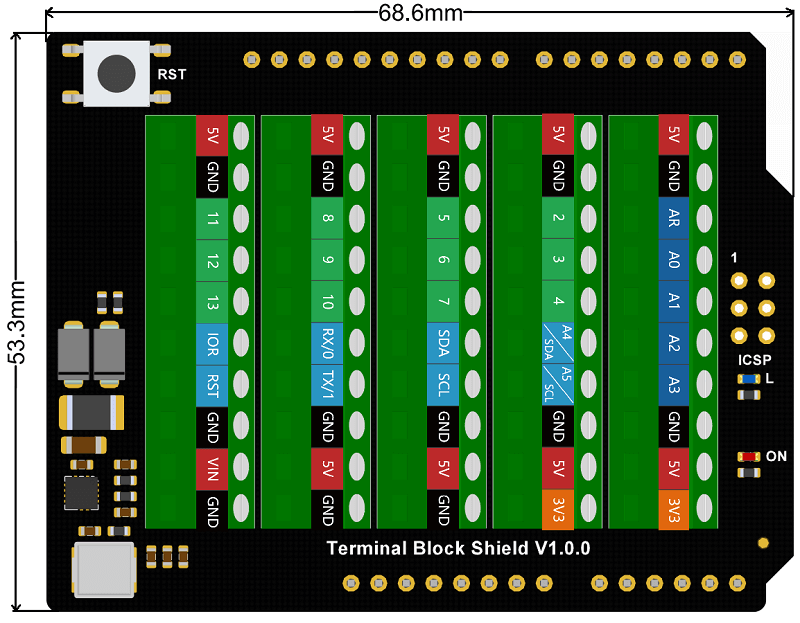

Board Overview

• Stable and reliable connection
• Easy wiring

• Commercial Project
• Art Show

• VIN Input Voltage: 7-24V DC
• Max Load Power: 10W
• Terminal Block Pitch: 3.5mm
• Wire Size Range: 26AWG-16AWG
• Wire Strip Length: 5mm
• Screw: M2
• Dimension: 68.6*53.3mm/2.70*2.10”

• Terminal Block Shield for Arduino x1
