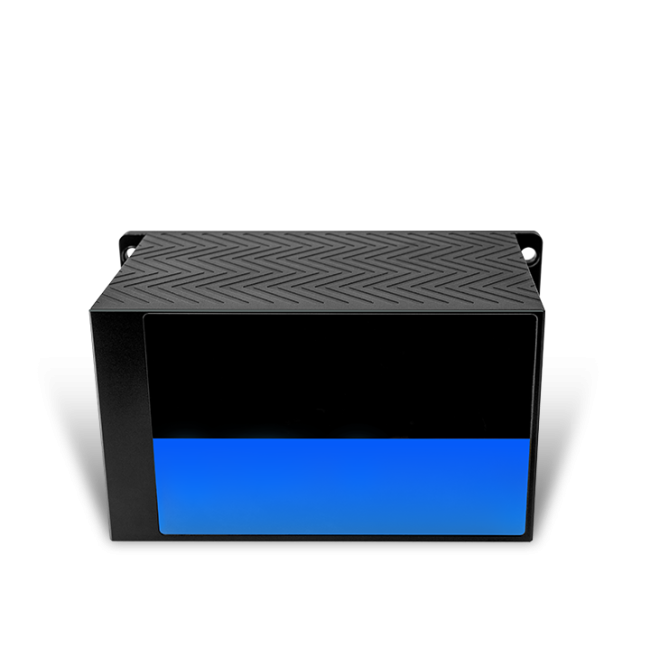

LSLidar - HS01 Fast Scanning Lidar

Be the first to review this product

£1,616.90 £1,347.42

High Reliability & Stability

The first domestic LiDAR officiallycertified by Ministry of Public Security.
Through continuously design innovation and advanced standardized production,
the LiDAR is guaranteed to provide excellent reliability and stability.

SKU

LS-HS01

Details

LSLidar - HS01

Fast Scanning LiDAR

Break the two Performance Barriers of "Fast Scanning" and "High Accuracy"

A Valuable Contribution for ITS

Fast Scanning

Max 200Hz

Modeling vehicles with speed of 120km/h on the highway

High Accuracy

+-2cm

Optical design by innovation not only brings the FAST SCANNING, but also increases the ACCURACY, evaluated as the best product in the world.

High Scanning Rate

53,000 pts/s

Capture the target position and attitude information in HIGH-SPEED movement Increase significantly the accuracy of detection systems

High Reliability & Stability

The first domestic LiDAR officiallycertified by Ministry of Public Security.

Through continuously design innovation and advanced standardized production, the LiDAR is guaranteed to provide excellent reliability and stability.

Anti-Vibration

Anti-Impact

IP67

Anti-Interference

Anti-Glare

Laser Wavelength	Scanning Channel
905nm	1 channel / 4 channels
Range	Data Acquisition Rate
100m@10%	53,000 pts/s
Accuracy	FOV
+-2cm	120º
Scanning Rate	Horizontal Resolution
10~200Hz	0.09°@40Hz(HS1), 0.09°@10Hz(HS4)
Power Supply	Working Temperature
9 V ~ 36V DC	-20℃~65℃
IP Rating	Dimension
IP67	155 x 107.5 x 90mm(L x W x H)
