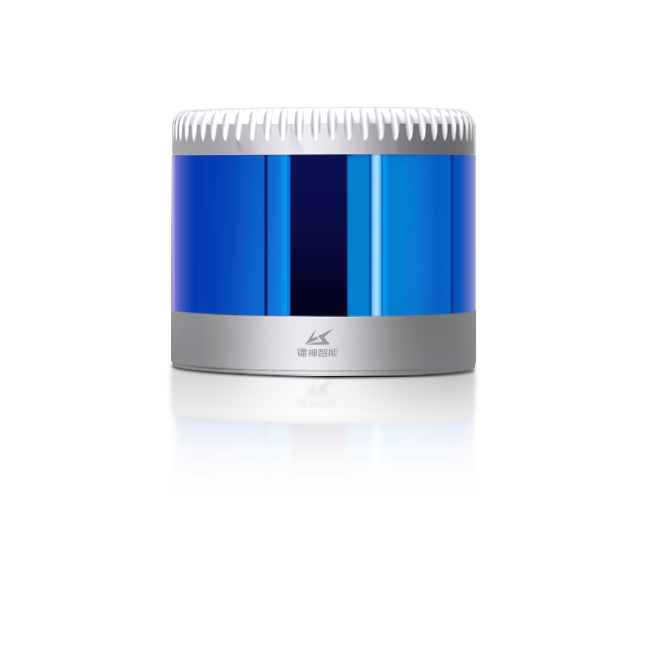

LSLidar - C32W 3D Mechanical Lidar
£2,728.50
£2,273.75
Wide-view Mechanical LiDAR
With wide FOV, C32W is able to identify short obstacles effectively within near range.
SKU
LS-C32W
LSLidar - C32W
Wide-view Mechanical LiDAR
With wide FOV, C32W is able to identify short obstacles effectively within near range.
360ºx 70º Ultra Wide FOV
C32W not only owns 360º surrounding view, but also vertically scanning between -55º ~15º, which focus on the scanning of lower space, and enables to identify short obstacles effectively within near range.
Accurate Perception within Near Range
160m Detection Range, +-2cm Accuracy
| Data Acquisition Rate | Scan Rate |
| 300,000 pts/s | 5/10/20Hz(optional) |
| Horizontal Resolution | Vertical Resolution |
| 0.09°@5Hz, 0.18°@10Hz, 0.36°@20Hz | Min 1.33º |
| Shock | Working Temperature |
| 500m/sec², Lasts 11ms | -40ºC ~ 60ºC |
| Vibration | IP Rating |
| 5Hz-2000Hz, 3G rms | IP67 |
| Dimension | 102 * 105 mm |
Security
Perimeter Security System
Security
3D Protection System
Autonomous Driving
Multi-sensor Fusion Perception System
Smart Logistics
Unmanned Forklift 3D SLAM Navigation
ITS
V2X Roadside Perception System
Rail Transportation
Railway Intrudment Inspection System (Train End)
Rail Transportation
Railway Intrudment Inspection System(Road End)
Rail Transportation
Railway Station Shelter Monitoring System
