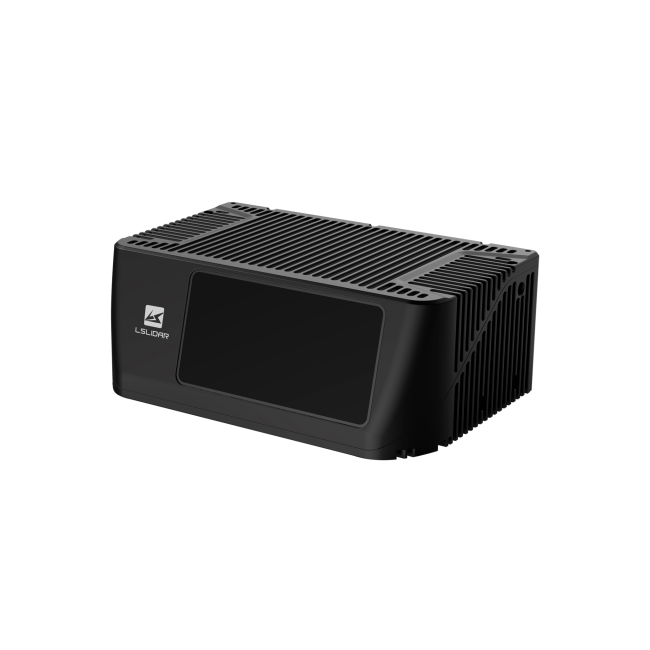

LSLidar - LS S4 Hybrid solid-state Lidar
£10,733.47
£8,944.56
SKU
LS-LSS4
LS-S4
The truly portable and versatile handheld 3D scanner for high-precision results
Top-Performance 1550nm LiDAR: Longer Range, Higher Precision, Denser Point Cloud
Home / Hybrid Solid-State LiDAR / 1550nm LiDAR / LS-S4 Ultra-Long-Range LiDAR
Exclusive Self-Developed 1550nm Fiber Laser - Safeguarding Low-Altitude Airspace
LSLiDAR’s exclusive 1550nm fiber laser empowers 1550nm LiDAR with superior performance: longer detection range, higher resolution, denser point cloud, enhanced perception of low, slow, and small targets, improved eye safety, and stronger resistance to light interference.
Longer Detection Range
1500m
Higher Frame Rate
20Hz
Sharper Resolution
±5cm

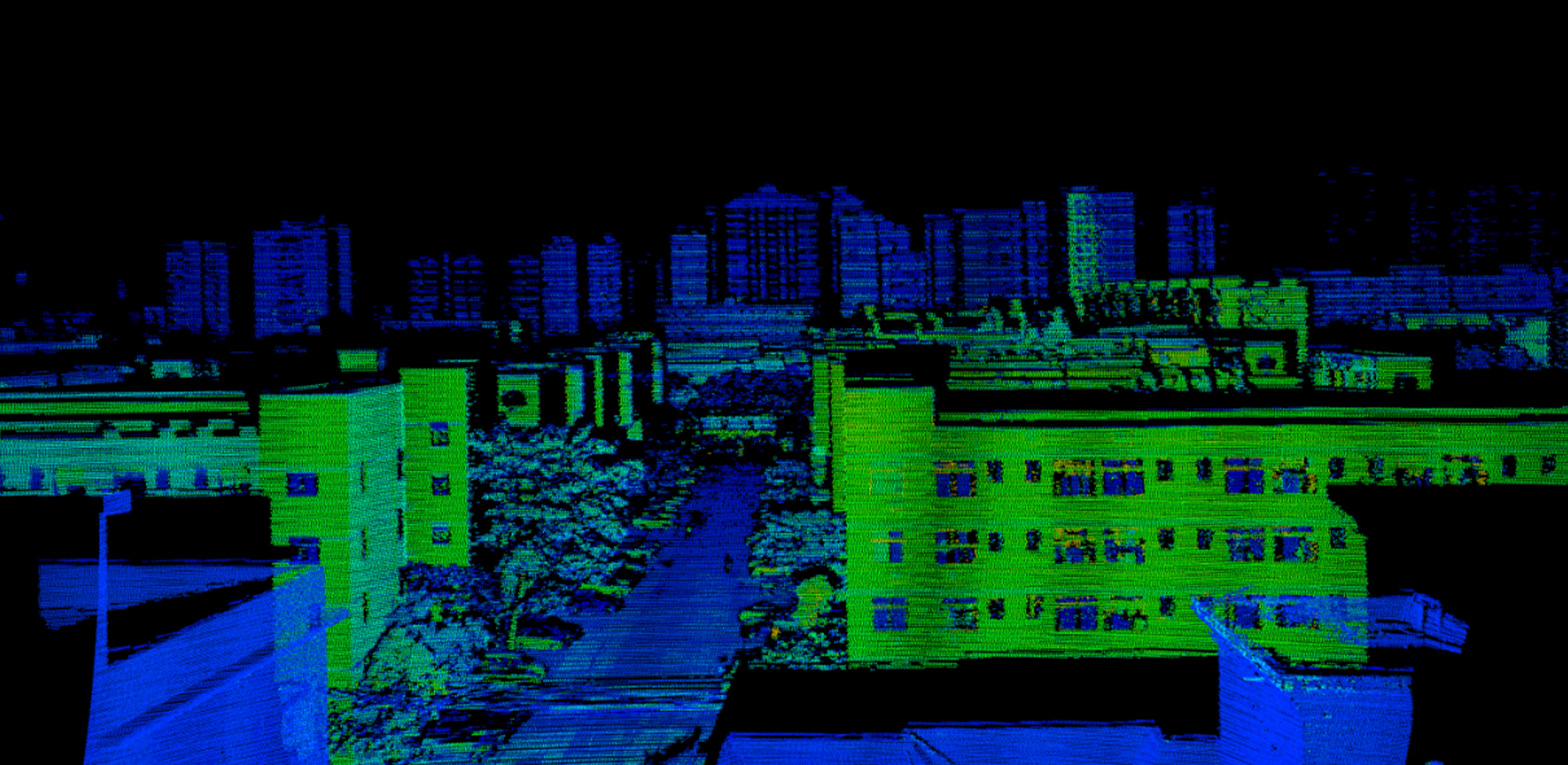

High-Frame-Rate Precision Point Cloud Imaging — No Dynamic Target Can Escape
With an ultra-dense point cloud output of 6 million points per second and a rapid 20Hz frame rate, every dynamic target is captured with exceptional clarity and speed.
Key Specifications
| Wavelength: | MAX Detection Range: | MAX Frame Rate: |
| 1550nm (CLASS 1) | 1500m | 20Hz |
| MAX Data Points Generated: | Min Angular Resolution (H): | Min Angular Resolution (V): |
| 6,000,000 pts/sec | 0.036° | 0.0487° |
| Range Accuracy: | Weight: | Dimensions (LxWxH): |
| ±5cm | 3kg | 219*149*85mm |
| Manufacturer | LSLidar |
|---|
