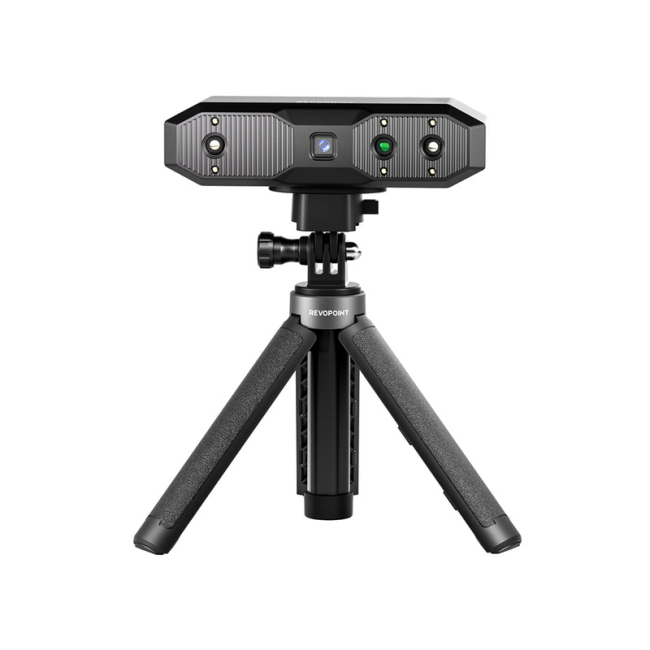

Revopoint - Mini 2 3D Scanner
As low as £1,066.80 £889.00
Capture the tiniest detail with the Revopoint MINI 2 3D scanner, the latest addition to the MINI series. Its powerful blue light metrological precision, upgraded hardware, and versatile accessories are ready to streamline 3D modeling for industrial inspection, customized healthcare, jewelry design, game modeling, and digitizing historical relics.
SKU
RVP-MINI2
Capture the tiniest detail with the Revopoint MINI 2 3D scanner, the latest addition to the MINI series. Its powerful blue light metrological precision, upgraded hardware, and versatile accessories are ready to streamline 3D modeling for industrial inspection, customized healthcare, jewelry design, game modeling, and digitizing historical relics.
Overview
Single-frame Precision
Up to 0.02 mm
Working Distance
120 mm ~ 250 mm
Single Capture Area at Furthest Distance
168 x 132 mm at 250 mm
Stabilized Smart Scanning
9-axis IMU
Scanning Speed
Up to 16 fps
Connection
USB Type-C
Metrology-grade Precision
Reliably capture intricate details with a precision of up to 0.02 mm.
0.02 mm
Single-frame Precision
Flexible Working Distance
120 ~ 250 mm Working Distance
Single Capture Area at Nearest Distance
52 x 64 mm at 120 mm
Single Capture Area at Furthest Distance
168 x 132 mm at 250 mm
Up to
16 fps Scanning Speeds
Create ready-to-use models in seconds.
Up to
2 Megapixels
Depth/RGB Cameras Resolution
Anti-shake 9-axis IMU
Eliminate faulty frames from shaking or rapid movement.
 |
CPU 2 core 1.8 GHz |
 |
Position Sensors 9-axis IMU |
Low-latency and Stable Scans
USB Type-C & Wi-Fi 6
Models Made With MINI 2
What's in the Box?
| Product Name | Revopoint MINI 2 | Depth Camera Resolution | 2 Megapixels |
| Technology | Dual-camera Blue Structured Light | RGB Camera Resolution | 2 Megapixels |
| Single-frame Precision | Up to 0.02 mm | Outdoor Scanning | No |
| Single-frame Accuracy | Up to 0.05 mm | Color Scanning | Yes |
| Single Capture Area at Nearest Distance | 52 x 64 mm at 120 mm | Scanner Weight | 175 g |
| Single Capture Area at Furthest Distance | 168 x 132 mm at 250 mm | Dimensions (L x W x H) | 132 x 53 x 36 mm |
| Working Distance | 120 ~ 250 mm | 3D Printing Compatible | Yes |
| Point Distance | Up to 0.02 mm | Compatible Operating Systems | Window 10/11 (64-bit), Android, iOS, macOS |
| Minimum Scan Volume | 10 x 10 x 10 mm | White Flash LEDs | Yes |
| Scanning Speed | Up to 16 fps | CPU | 2 core, 1.8 GHz |
| Position Sensors | 9-axis IMU | Wi-Fi | Wi-Fi 6 |
| Light Source | Class 1 Blue Light | Connector Type | USB Type-C |
| Tracking Methods | Feature/Marker | User Recalibration | Yes |
| Output File Formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX | Special Object Scanning | Use scanning spray for transparent, dark, or highly reflective objects. |
| PC Requirements (macOS) | RAM: ≥8GB CPU (or better): M1 Pro/M1 Max/M1 Ultra M2/M2 Pro/M2 Max/M2 Ultra M3/M3 Pro/M3 Max |
PC Requirements (Windows) | RAM: ≥16GB CPU (or better): i5 12th/13th/14th i7 12th/13th/14th i9 all series |
- Accuracy was acquired in a controlled lab environment. Actual results might vary, subject to the operation environment.
- iOS devices only support Wi-Fi connection.
- Class 1 Laser: Avoid direct eye exposure for extended periods! Refer to Standards for Class 1 Lasers for details.
- Warning: This product has flashing lights which may not be suitable for people with photosensitive epilepsy.
