Revopoint - Range 2 3D Scanner
£838.80
£699.00
RANGE 2 3D Scanner: Fast and Powerful Large Object 3D Scanning
· Single-frame Precision: Up to 0.1 mm
· Depth/RGB Camera Resolution: 2 Megapixels
· Scanning Speed: Up to 16 fps
· Working Distance: 400 - 1300 mm
· Single Capture Area at Furthest Distance: 860 x 1380 mm at 1300 mm
· Scanner Weight: Only 253 g
SKU
RVP-RANGE2

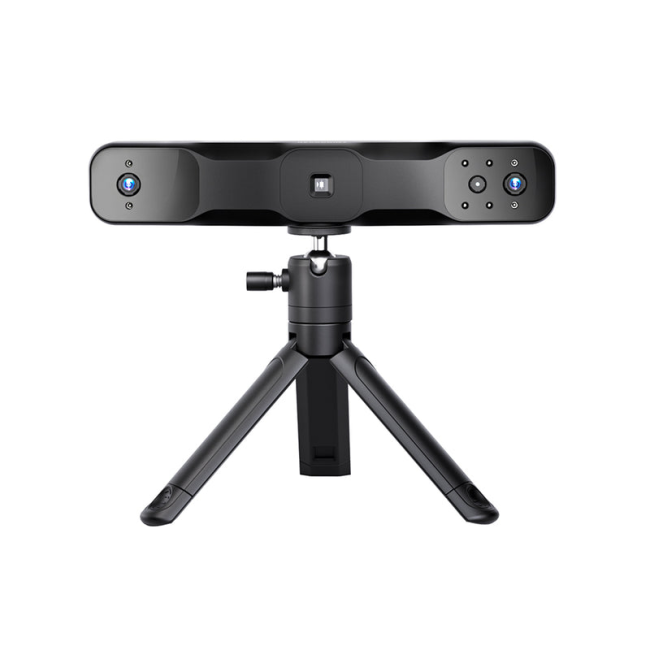

Revopoint RANGE 2 is a portable handheld dual depth camera structured infrared light 3D scanner designed for capturing large objects like furniture, people, and vehicles.
Overview
Single-frame Precision
Up to 0.1 mm
Working Distance
400 mm ~ 1300 mm
Single Capture Area at Furthest Distance
860 x 1380 mm at 1300 mm
Stabilized Smart Scanning
9-axis IMU
Lighting System
4 Flash LEDs
Connection
USB Type-C
Reliability Matters
Reliably and consistently capture objects with RANGE 2's
single-frame precision of up to 0.1 mm.
Up to
2 Megapixels
Depth/RGB Camera Resolution
Up to
0.1 mm
Fused Point Distance
Flexible Working Distance
Capture objects at a 400 ~ 1300 mm distance.
Single Capture Area at Furthest Distance
860 x 1380 mm at 1300 mm
Single Capture Area at Nearest Distance
220 x 425 mm at 400 mm
Large Single Capture Range
Capture large objects efficiently.
Highly Portable
Take it everywhere and scan at any time.
White Flash LEDs
Remove shadows for enhanced color scans.
Tactile Buttons
User-friendly buttons for easier control.
Tactile Buttons
User-friendly buttons for easier control.
Models Made With RANGE 2
What's in the Box?
| Product Name | Revopoint RANGE 2 | Outdoor Scanning | Yes |
| Technology | Dual-camera Infrared Structured Light | Color Scanning | Yes |
| Single-frame Precision | Up to 0.1 mm | Scanner Weight | 253 g |
| Single-frame Accuracy | Up to 0.3 mm | Dimensions (L x W x H) | 240 x 43 x 46 mm |
| Single Capture Area at Nearest Distance | 220 x 425 mm at 400 mm | Ready to Print 3D Models | Yes |
| Single Capture Area at Furthest Distance | 860 x 1380 mm at 1300 mm | Compatible Operating Systems | Window 10/11 (64-bit), Android, iOS, macOS |
| Working Distance | 400 - 1300 mm | External Controls | Three buttons for Start/Pause, Exposure +, - |
| Point Distance | Up to 0.1 mm | Infrared Fill Lights | Yes |
| Minimum Scan Volume | 50 × 50 × 50 mm | White Flash LEDs | Yes |
| Scanning Speed | Up to 16 fps | Output File Formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
| Position Sensors | 9-axis IMU | Wi-Fi | Wi-Fi 6 |
| 3D Light Source | Class 1 Infrared Light | Connector Type | USB Type-C |
| Tracking Methods | Feature/Marker | Special Object Scanning | Use scanning spray for transparent, dark, or highly reflective objects. |
| PC Requirements (macOS) | RAM: ≥8GB CPU (or better): M1 Pro/M1 Max/M1 Ultra M2/M2 Pro/M2 Max/M2 Ultra M3/M3 Pro/M3 Max |
PC Requirements (Windows) | RAM: ≥16GB CPU (or better): i5 12th/13th/14th i7 12th/13th/14th i9 all series |
- Precision is how close repeated measurements of the same object are to each other. Accuracy is how close a measured value is to the actual (true) value. They were both acquired in a controlled lab environment. Actual results might vary, subject to the operation environment.
- Class 1 Laser: Avoid direct eye exposure for extended periods! Refer to Standards for Class 1 Lasers for details.
- Outdoor scans should avoid direct sunlight.
- Some products have flashing lights, which may not be suitable for people with photosensitive epilepsy.
