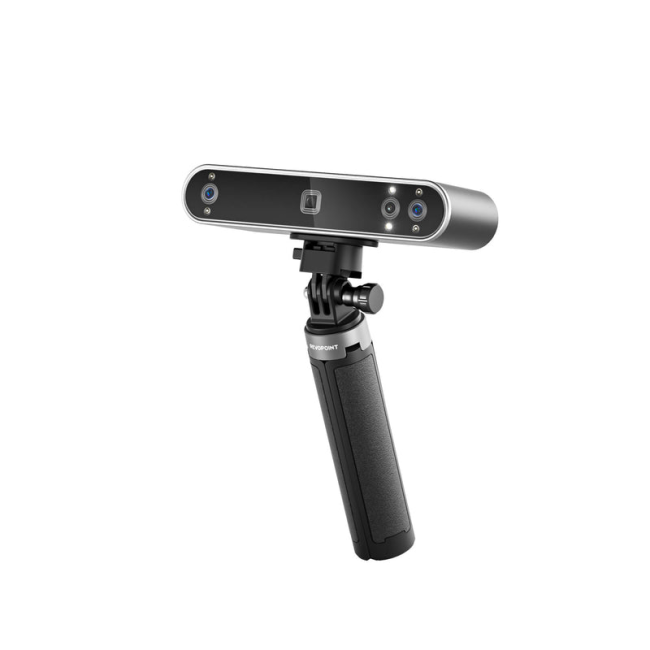

Revopoint - POP 3 PLUS 3D Scanner
As low as £834.00 £695.00
The POP 3 Plus updates the POP series with 20% better accuracy and precision and added optical zoom. Whether you need an accurate 3D model for 3D printing, animating, reverse engineering, modifying vehicles, or other applications, it's ready to help.
SKU
RVP-POP3P
Every Detail Optimized
The POP 3 Plus updates the POP series with 20% better accuracy and precision and added optical zoom. Whether you need an accurate 3D model for 3D printing, animating, reverse engineering, modifying vehicles, or other applications, it's ready to help.
Accurate Every Time
Single-frame Accuracy
Up to
0.08 mm
New Calibration Board Ensures Accuracy and Precision
Capture Data Fast at
Up to
18 fps
Capture Finer Details
New Optical Projector Zoom (Up to 2x Zoom)
1X
2X
Better Marker Tracking
Global Marker Tracking Mode
Full-color 3D Models
HD RGB Camera
Flash LEDs Ensure Accurate Color Capture
Portable and Compact
Scanner Weighs Only 190 g
Responsive Controls
Decrease Exposure ｜ Start/Pause Scans ｜ Increase Exposure
Powerful Software
Compatible with iOS, Android, Windows, and macOS devices.
Supports STL, PLY, OBJ, ASC, 3MF, GLTF, and FBX file formats for compatibility with most CAD, 3D modeling, and slicer software.
Models Made With POP 3 PLUS
What's in the Box?
| Product Name | POP 3 Plus 3D Scanner | Technology | Dual-camera Infrared Structured Light |
| Single-frame Accuracy, up to | 0.08 mm | Single-frame Precision, up to | 0.04 mm |
| Scanning Speed，up to | 18 fps | Fused Point Distance, up to | 0.05 mm |
| Single Capture Area at Nearest Distance | 61 x 68 mm at 150 mm | Single Capture Area at Furthest Distance | 244 x 180 mm at 400 mm |
| Scanning Type | Handheld and Desktop | Working Distance | 150 ~ 400 mm |
| Minimum Scan Volume | 20 x 20 x 20 mm | Maximum Scan Volume | 2 x 2 x 2 m |
| Auxiliary Lighting | Infrared Fill Lights, White Flash LEDs | Angular Field of View, H x W | 40 x 25° |
| CPU | 2 core, 1.6GHz | Position Sensors | 9-axis IMU |
| Scanner Weight | 190 g | Dimensions（L x W x H） | 153 x 45 x 29 mm |
| Tracking Methods | Feature , Marker | Buttons | 3 |
| Connector Type | USB Type-C | Power Requirements | DC 5V, 1A |
| Wi-Fi | 6 | Bluetooth | 4.1 |
| Special Object Scanning | Use scanning spray for transparent, dark, or highly reflective objects | Scanning Environment | Indoors and Outdoors |
| Ready to Print 3D Models | Yes | Output File Formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
| User Recalibration | Yes | Supported Accessories | Large Turntable, Dual-axis Turntable, Handheld Stabilizer, Power Bank, Mobile Kit |
| Compatible Systems | Windows 10/11(64-bit), Android, iOS, macOS | Light Type | Class 1 Infrared Light (Eye Safe) |
| macOS 11.0 or better | Minimum Requirements CPU M1 Pro or better RAM ≥8GB Connection: Thunderbolt 4 or better, or Wi-Fi Recommended Requirements CPU M1 Pro or better RAM ≥16GB Connection: Thunderbolt 4 or better, or Wi-Fi |
Windows 10/11 (64 bit) | Minimum Requirements CPU i5 12th gen or better RAM ≥16GB Connection: USB 3.0 port or better, or Wi-Fi Recommended Requirements CPU Intel Core i7 or better RAM ≥16GB Connection: USB 3.0 port or better, or Wi-Fi |
- Precision is how close repeated measurements of the same object are to each other. Accuracy is how close a measured value is to the actual (true) value. They were both acquired in a controlled lab environment. Actual results might vary, subject to the operation environment.
- Class 1 Laser: Avoid direct eye exposure for extended periods! Refer to Standards for Class 1 Lasers for details.
- Outdoor scans should avoid direct sunlight.
- POP 3 Plus has flashing lights, which may not be suitable for people with photosensitive epilepsy.
