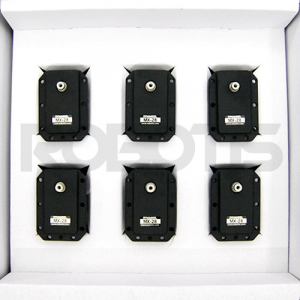

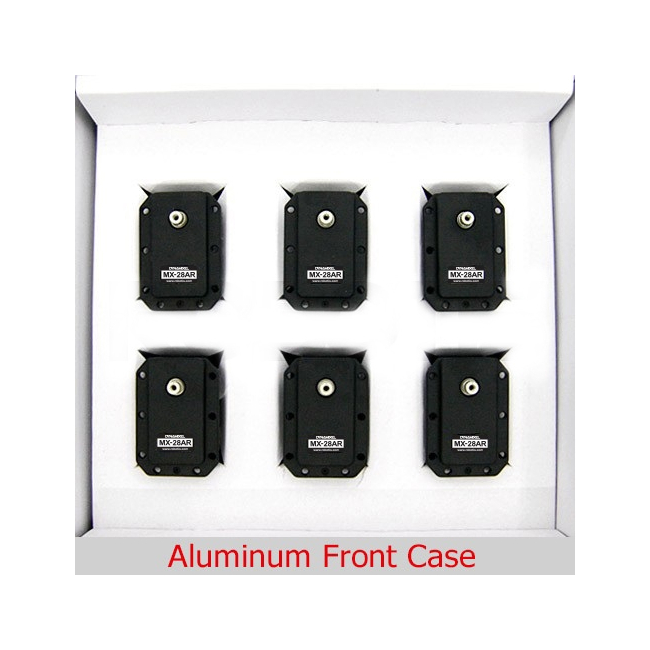

Robotis - DYNAMIXEL MX-28AR 6pcs Bulk (Aliminium front case)

Be the first to review this product

£1,411.50 £1,176.25

Robotis - DYNAMIXEL MX-28AR 6pcs Bulk (Aliminium front case). The Dynamixel MX Series servos feature a contactless (Magnetic) position encoder and PID control for superior accuracy and reliability. The MX series offers 12bit (4096) position resolution and can operate in the 360º range offering 0.008º resolution.

SKU

R-902-0099-000

Details

Robotis - Dynamixel MX-28AR (Aluminium front case)

The Dynamixel MX Series servos feature a contactless (Magnetic) position encoder and PID control for superior accuracy and reliability. The MX series offers 12bit (4096) position resolution and can operate in the 360º range offering 0.008º resolution.

Dynamixel Servos are connected using a Daisy Chain mechanism and are queried and controlled with an advanced Serial protocol. Over 50 Read/Write parameters are available including Position feedback, Load feedback and PID tuning.

Compared with the standard MX-28R this newer version improoves the heat dissipation, adds threaded holes in the front for easy assembly and maintains the same dimensions so you can use the same frames as before.

Features:

Decreased noise and improved protection against heat
Front screw threads are already threaded for easy bolt assembly
Same dimensions as the existing DYNAMIXEL M-series (option frames are compatible)
Advanced durability, degree of precision, and wider control zone were achieved thanks to the newly applied contactless absolute encoder
360 degrees position control without dead zone
4,096 precise resolution by 0.088 degrees
Speed control at wheel mode
Reliability and accuracy were advanced in the position control through PID control
High baud rate up to 4.5Mbps
RS-485 communication

Specifications:

Weight	77g
Dimension	35.6mm x 50.6mm x 35.5mm
Gear Ratio	193 : 1
Operation Voltage (V)	11.1	12	14.8
Stall Torque (N.m)	2.3	2.5	3.1
Stall Current (A)	1.3	1.4	1.7
No Load Speed (RPM)	50	55	67

Motor	Maxon Motor
Minimum Control Angle	About 0.088 degrees x 4,096
Operating Range	Actuator Mode : 360 degrees Wheel Mode : Endless turn
Operating Voltage	10~14.8V (Recommended voltage : 12V)
Operating Temperature	-5°C ~ 80°C
Command Signal	Digital Packet
Protocol	Half duplex Asynchronous Serial Communication (8bit,1stop, No Parity)
Link (physical)	RS485 Multi Drop BUS (daisy chain type connector)
ID	254 ID (0~253)
Baud Rate	8000bps ~ 4.5Mbps
Feedback Functions	Position, Temperature, Load, Input Voltage, etc.
Material	Case : Engineering Plastic Gear : Full Metal
Positioin Sensor	Contactless absolute encoder
