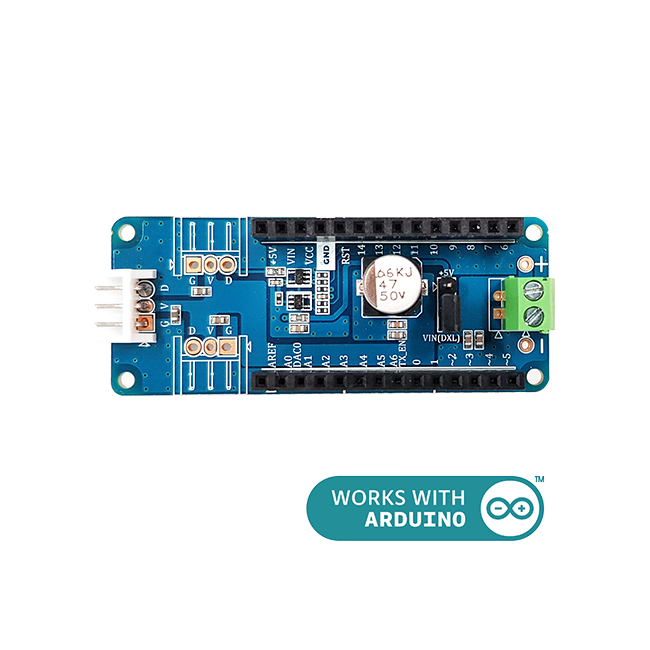

DYNAMIXEL Shield for Arduino MKR Series
£21.00
£17.50
DYNAMIXEL Shield for Arduino MKR Series is the ideal solution to easily connect DYNAMIXEL (TTL) to MKR series Form Factor Arduino boards.
SKU
R-902-0146-001
Features
DYNAMIXEL Shield for Arduino MKR Series is the ideal solution to easily connect DYNAMIXEL (TTL) to MKR series Form Factor Arduino boards.
DYNAMIXEL Shield Arduino library for DYNAMIXEL Shield is supported via Arduino IDE to accelerate the development process for operating DYNAMIXEL on Arduino.
Please refer to the DYNAMIXEL Shield Libraries section of ROBOTIS e-Manual for available APIs.
Package Components
| DYNAMIXEL Shield for Arduino MKR series | 1 |
|---|---|
| JST(S3B-EH) | 2 |
| Molex(5268-02A) | 2 |
| DC Jack Harness | 1 |
| Battery Connector(SMW250-02) | 1 |
| XL-320 Convertible cable | 1 |

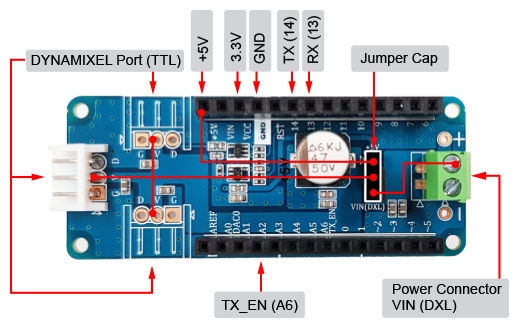

H/W Specifications
| VIN(DYNAMIXEL) Voltage | 3.5 ~ 24[V] |
|---|---|
| Operating Temperature | -10 ~ +80 [°C] |
| Connectors | JST(S3B-EH), Molex(5268-02A), Battery Connector3(SMW250-02), Terminal Block(DG350-3.5-02P-14) |
| Physical Connection | TTL Multidrop Bus (3.3V Logic, 5V Compatible) |
| Cables | DC Jack Harness (Type A, O.D.: 5.5 [mm], I.D.: 2.5 [mm]), Convertible cable for XL-320 |
| Dimensions | 65 x 25 [mm] |
| Weight | 11 [g] |
Caution
1. This product does not contain Arduino MKR Board. Arduino Board should be purchased separately.
2. One of three DYNAMIXEL connectors is attached to the shield for the DYNAMIXEL X series
More connectors (JST(S3B-EH), Molex(5268-02A)) for AX/MX/X series are included.
3. Please solder included headers and parts when necessary.
4. Some Arduino MKR shields may not fully compatible with DYNAMIXEL Shield MKR due to the pin confliction.
Please refer to each product datasheet before using it with DYNAMIXEL Shield MKR.
5. ROBOTIS SMPS 12V 5A PS-10 is recommended for a 12V DYNAMIXEL power supply.
6. Only one DYNAMIXEL Connector (JST) is assembled by default. Please solder included connectors when necessary.
7. The battery connector is compatible with ROBOTIS batteries LB-010 or LB-020.
Please be aware that Arduino MKR boards may limit the 5V power source for USB hardware protection.
Links
○ e-Manual : https://emanual.robotis.com/docs/en/parts/interface/mkr_shield/
