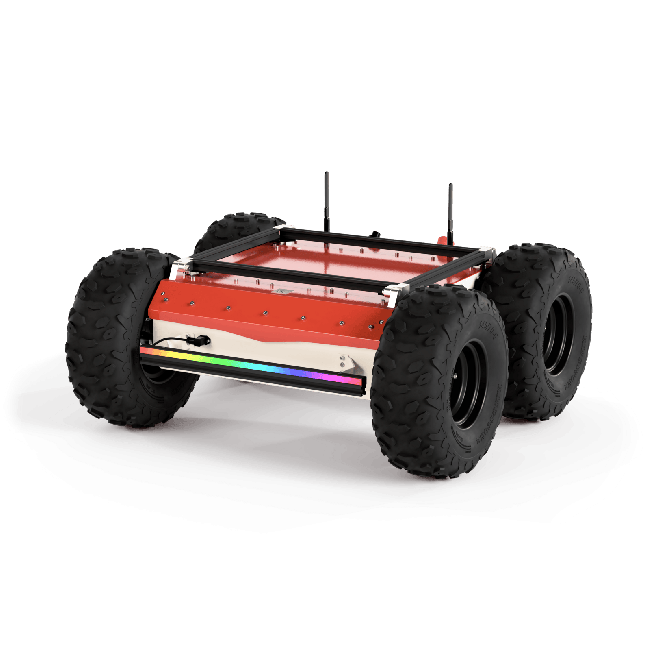

Husarion - Panther Mobile Robot Platform
From £17,755.14 £14,795.95
To £80,050.90 £66,709.08
The Husarion Panther is a rugged, ROS 2-powered mobile robot platform built for demanding indoor and outdoor applications. With all-terrain mobility, a 100 kg payload capacity and flexible mounting for LiDAR, cameras, robotic arms and other equipment, it provides a versatile foundation for inspection, agriculture, research and autonomous robotics projects.
SKU
HUS-PANTH
Mobile Robot Platform for Outdoor Applications
Panther is a rugged Unmanned Ground Vehicle (UGV) platform, engineered for demanding outdoor environments. Equipped with high-profile wheels and four powerful BLDC motors, plus an IP54/66-rated chassis, it’s designed to tackle the toughest challenges. Panther’s versatility enables seamless integration of LIDARs, 3D cameras, manipulators, and other components through its V-slot mounting rail, available power ports, and extensive communication interfaces. With open-source ROS and ROS 2 drivers, along with a robust suite of software examples (such as the open source autonomy stack), Panther makes developing your product or research project both simple and intuitive.
55 kg
weight
100 kg
payload
3.5-16 h
runtime
2 m/s
max speed
4 x 473 W
BLDC motors
IP54 / IP66
water protection
Specification
| Physical Properties | |
|---|---|

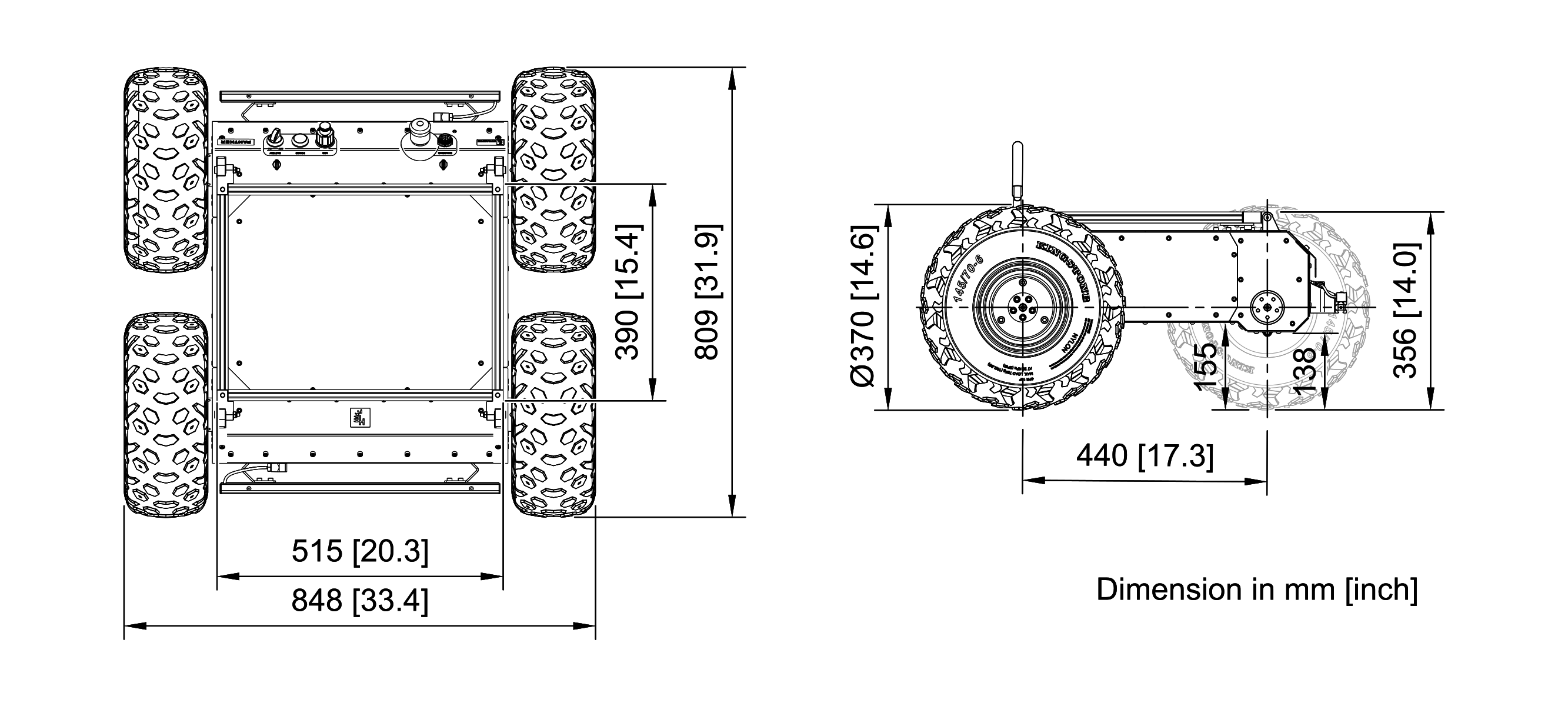

| dimensions (L x W x H) | 0.81 x 0.85 x 0.37 m |
| weight | 55 kg (including single battery) |
| ground clearance | 138 mm |
| protection index | IP54 / IP66 |
| operating temperature | -20°C to 50°C |
| Traction | |
|---|---|
| max speed | 2 m/s |
| hill climb grade (with 52 / 100 kg cargo) | 96% (44°) / 54% (28°) |
| max carrying capacity | 100 kg |
| shaft torque (nominal / max) | 34.5 Nm / 60 Nm |
| traction force (nominal / max) | 725 N / 1511 N |
| Motors | 4 x BLDC, 473 W each |
| Battery params | |
|---|---|
| capacity [dual option] / voltage | 720 Wh [1440 Wh] / 36V (nominal) |
| chemistry | Lithium-Ion |
| charging | cable / wireless (option) |
| runtime [dual option] | 3.5 h - 8 h [7 h - 16 h] |
| output power (total / peak) [dual option] | 1.0 kW / 1.8 kW [2.0 kW / 3.2 kW] |
| charging temperature | 0°C to 45°C |
Components

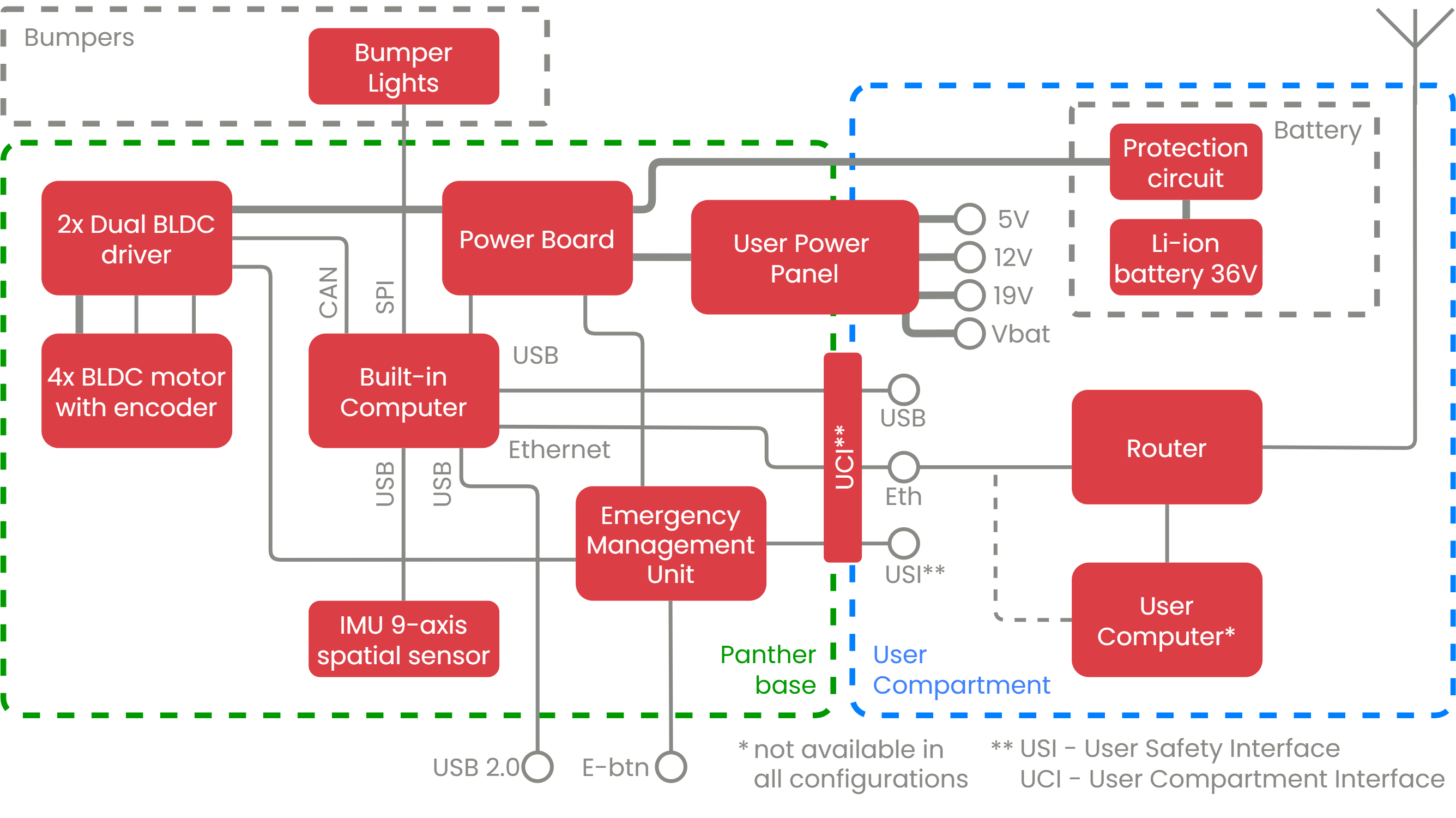

Panther's block diagram:
Inside the User Compartment, you have a variety of options to adjust your platform to your needs:
Industrial Router: |
Default options include Teltonika RUTX11 / RUTX50, offering Ethernet (4 / 5 ports), Wi-Fi, cellular connectivity (4G / 5G), and GNSS. You can also install your own router. |
User Computer: |
Choose from default options like:
You also have the flexibility to integrate your own computing hardware, or even design your own user compartment chassis. |
User Power Ports: |
Supplies up to 780 W of total power with multiple voltage options 5 V, 12 V, 19 V, and 32–42 V. |
On top of the robot, using the V-slot mounting rail, you can install LIDARs, cameras, robotic arms, or any equipment required by your application.
What's in the box
The default Panther package contains:
- Panther mobile base
- charger
- gamepad

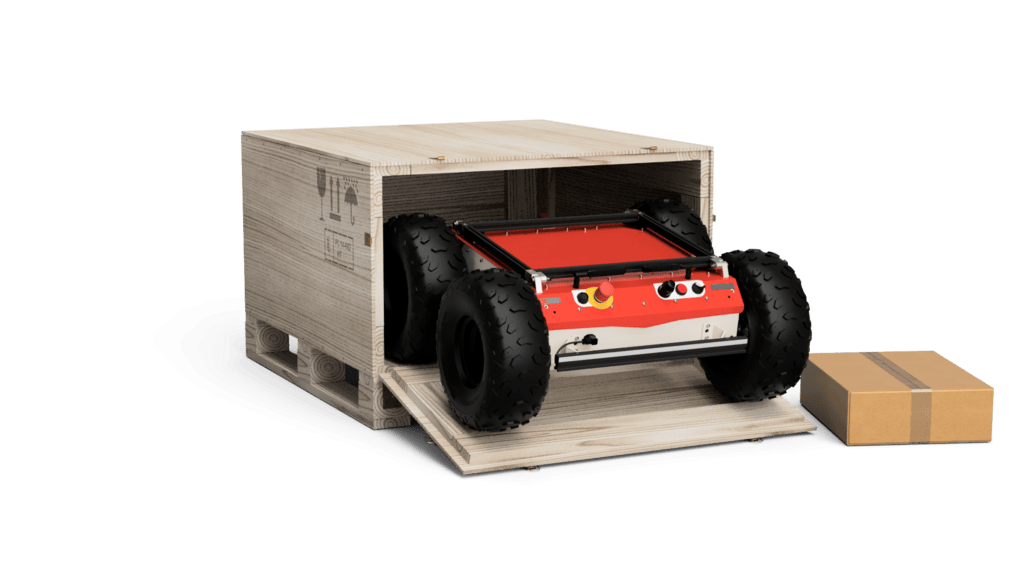

The robot is shipped in a wooden crate (1000 x 970 x 660 mm).
The content of the package may vary depending on the final configuration of the robot.
Getting Started Videos
[1] IP54 and IP66 these options relate only to the Panther robot platform and do not cover 3rd party components.
[2] The cost of air shipment of the BAT02 option could increase from 50% to 90% because of the air transport regulations.
[3] WAR02 and WAR03 option includes only the base version of Panther mobile platform with batteries. It does not cover third party components.
[4] ANT03 is required with RUTX50 router due to 5G compatibility.
[5] DEVXX options may conflict with other options and should be confirmed before placing the order.
[6] ZED series cameras require NVIDIA GPUs to be fully operational. Image acquisition can be performed on the CPU, but some functionalities offered by the manufacturer are not available. We recommend pairing ZED series cameras with PC07 or PC09.
[7] WCH01 and WCH02 options are not available with BAT02.
| Manufacturer | Husarion |
|---|
