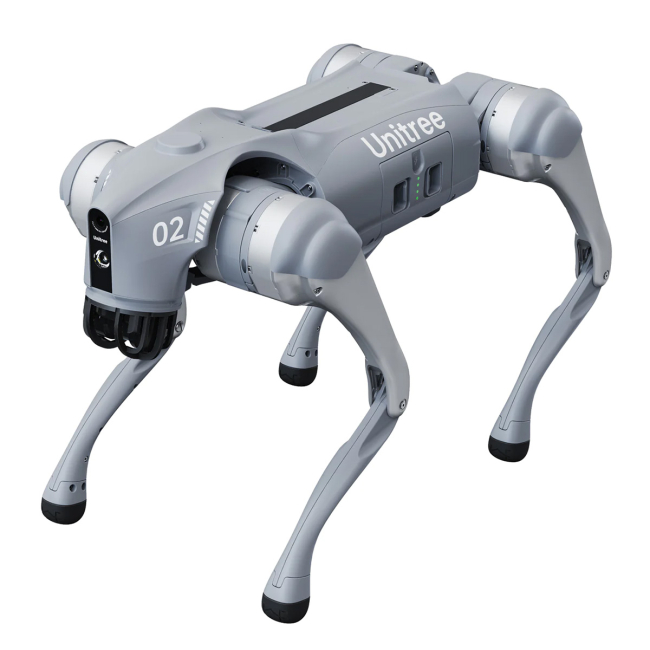

Unitree - GO2 AIR

£2,150.30 £1,791.92
SKU
UNI-GO2-AIR
Brand
Unitree

The New Generation

Unitree Go2





Scientific and Technological Innovation




Based on the technical innovation and the industrial leadership, Unitree upgraded its technology, returning for a smart and improved partner

Equipped with standard 4D LIDAR and recognition system upgraded by 200%

Go2 is equipped with Unitree self-developed 4D lidar L1. It has a 360°×90° hemispherical ultra-wide-angle perception capability and few blind spots. The minimum detection distance of Go2 is as low as 0.05m and can realize all-terrain awareness.

Embodied Intelligence: AI+Robot

GPT empowers new intelligent creature.

Go2 can process and analyze data from GPT’s huge language and knowledge base, to better understand the world and make decisions.


Note: Use varies by country or region, please refer to the actual situation.

Rich in Actions and poses.

Go2 boasts a variety of poses such as jumping, stretching, shaking hands, cheering, pouncing, and sitting down.

Battery capacity and endurance upgraded by 150%.

Go2 is equipped with a battery capacity increased to 8,000mAh, as a 15,000mAh ultra-long life battery is optional, and a voltage increased to 28.8V to improve motor efficiency, power and stability.

Knee motor performance enhanced by 30%.

Go2 boasts a peak joint torque of 45N.m[1], a new internal trace connecting technique, and heat pipe coolers in the knee area.

ISS2.0 - Intelligent Side-follow System

By adopting the new wireless vector positioning and control technology, the positioning accuracy is technically upgraded by 50%, the remote control distance is over 30m, and combined with the optimised obstacle avoidance strategy, it can make the robot better traverse complex terrain.

OTA Upgrades - Advanced and intelligent.

With user authorisation, the robot automatically connects to a cloud-based OTA service to upgrade its own programs to continuously improve the user experience.



Super Recognition System

4D LIDAR L1

Max Running Speed

Approx. 5M/s (tested in lab)

Peak Joint Torque

Approx. 45N.m

Wireless Module

WiFi 6/Bluetooth/4G

Ultra-long battery Endurance

Approx. 2h—4h (Long battery life measured in real life)

Intelligent Side-follow System

ISS 2.0






Intelligent Interaction

Have great fun with the APP

HD picture quality, real-time and stable.

A new App realizes HD image transmission and real-time remote monitor. Built-in 4G and eSIM enables more stable connection and remote control.



Pushing boundaries with technology

Equipped with more high-tech devices


Specification




AIR

PRO

EDU

*A variety of configurations are available, please contact us for details

EDU PLUS

*A variety of configurations are available, please contact us for details

Dimension - Standing70x31x40cm70x31x40cm70x31x40cm70x31x40cm
Dimension - Crouching76x31x20cm76x31x20cm76x31x20cm76x31x20cm
Weight (with battery)About 15kgAbout 15kgAbout 15kgAbout 15kg
Material

Aluminium alloy +

High strength engineering plastic

Aluminium alloy +

High strength engineering plastic

Aluminium alloy +

High strength engineering plastic

Aluminium alloy +

High strength engineering plastic

Voltage28V~33.6V28V~33.6V28V~33.6V28V~33.6V
Peaking capacityAbout 3000WAbout 3000WAbout 3000WAbout 3000W
Payload≈7kg



MAX ~ 10kg
≈8kg



MAX ~ 10kg
≈8kg



MAX ~ 12kg
≈8kg



MAX ~ 12kg
Speed0 ~ 2.5m/s0 ~ 3.5m/s

0 ~ 3.7m/s

MAX ~ 5m/s

0 ~ 3.7m/s

MAX ~ 5m/s

Max Climb Drop HeightAbout 15cmAbout 16cmAbout 16cmAbout 16cm
Max Climb Angle30°40°40°40°
Basic Computing Power8-core High-performance CPU8-core High-performance CPU8-core High-performance CPU
Max Torque[1]About 45N.mAbout 45N.mAbout 45N.m
Aluminum knee joint motor12 set12 set12 set12 set
Range of Motion

body:-48~48°

thigh:-200°~90°

shank:-156°~-48°

body:-48~48°

thigh:-200°~90°

shank:-156°~-48°

body:-48~48°

thigh:-200°~90°

shank:-156°~-48°

body:-48~48°

thigh:-200°~90°

shank:-156°~-48°

Intra-joint circuit (knee)
Joint Heat Pipe Cooler
Super-wide-angle 3D LIDAR
Wireless Vector Positioning Tracking Module
HD Wide-angle Camera
Foot-end force sensor
Basic Action
Auto-scaling strap
Upgraded Intelligent OTA
RTT 2.0 (image transmission)
Graphical programme
Front lamp
WiFI6 with Dual-band
Bluetooth 5.2/4.2/2.1
4G module
Voice Function[2]
ISS 2.0 Intelligent side-follow system
Intelligent detection and avoidance
Charging Pile Compatibility
Secondary development[3]
Manual controlleroptionaloptional
High computing power module

Nvidia Jetson Orin Nano

40Tops computing power

Nvidia Jetson Orin NX

100Tops computing power

Smart battery

standard

(8000mAh)

standard

(8000mAh)

long endurance

(15000mAh)

long endurance

(15000mAh)

Battery lifeAbout 1-2hAbout 1-2hAbout 2-4hAbout 2-4h
Charger

standard

(33.6V 3.5A)

standard

(33.6V 3.5A)

fast charge

(33.6V 9A)

fast charge

(33.6V 9A)

Warranty period[4]6 months12 months12 months12 months

NOTE:

[1] The maximum torque in the table refers to the maximum torque of the largest joint motor; the actual maximum torque varies for the 12 joint motors.

[2] Voice functions include offline voice interaction, commands, intercom and music play.

[3] For more information, please read the secondary development manual

[4]For more detailed warranty terms, please read the product warranty brochure.

[5] The above parameters may vary in different scenarios and configurations, please subject to actual situation.

[6] If any change in the appearance of the product, please refer to the actual product.
