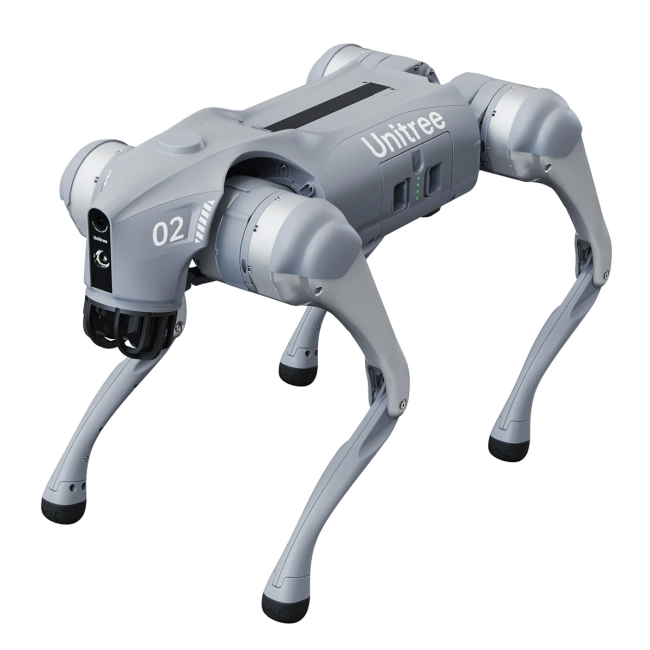

Unitree Go2 X Robot Dog
£4,320.00
£3,600.00
The Go2 by Unitree is a remarkable robot dog engineered for the most discerning robotics enthusiasts. With its lifelike movements, intelligent AI, and open-source platform, it provides a thrilling platform for robotic developers and researchers.
The Go2 empowers you to explore cutting-edge robotics, pushing the boundaries of what's possible in the world of artificial intelligence and robotic companions.
The Go2 X is similar to the Go2 Pro but comes with programming capabilities
SKU
UNi-GO2X
The New Generation
Unitree Go2
Scientific and Technological Innovation
Based on the technical innovation and the industrial leadership, Unitree upgraded its technology, returning for a smart and improved partner
Equipped with standard 4D LIDAR and recognition system upgraded by 200%
Go2 is equipped with Unitree self-developed 4D lidar L1. It has a 360°×90° hemispherical ultra-wide-angle perception capability and few blind spots. The minimum detection distance of Go2 is as low as 0.05m and can realize all-terrain awareness.
Embodied Intelligence: AI+Robot
GPT empowers new intelligent creature.
Go2 can process and analyze data from GPT’s huge language and knowledge base, to better understand the world and make decisions.
Note: Use varies by country or region, please refer to the actual situation.
Rich in Actions and poses.
Go2 boasts a variety of poses such as jumping, stretching, shaking hands, cheering, pouncing, and sitting down.
Battery capacity and endurance upgraded by 150%.
Go2 is equipped with a battery capacity increased to 8,000mAh, as a 15,000mAh ultra-long life battery is optional, and a voltage increased to 28.8V to improve motor efficiency, power and stability.
Knee motor performance enhanced by 30%.
Go2 boasts a peak joint torque of 45N.m[1], a new internal trace connecting technique, and heat pipe coolers in the knee area.
ISS2.0 - Intelligent Side-follow System
By adopting the new wireless vector positioning and control technology, the positioning accuracy is technically upgraded by 50%, the remote control distance is over 30m, and combined with the optimised obstacle avoidance strategy, it can make the robot better traverse complex terrain.
OTA Upgrades - Advanced and intelligent.
With user authorisation, the robot automatically connects to a cloud-based OTA service to upgrade its own programs to continuously improve the user experience.
Super Recognition System
4D LIDAR L1
Max Running Speed
Approx. 5M/s (tested in lab)
Peak Joint Torque
Approx. 45N.m
Wireless Module
WiFi 6/Bluetooth/4G
Ultra-long battery Endurance
Approx. 2h—4h (Long battery life measured in real life)
Intelligent Side-follow System
ISS 2.0
Intelligent Interaction
Have great fun with the APP
HD picture quality, real-time and stable.
A new App realizes HD image transmission and real-time remote monitor. Built-in 4G and eSIM enables more stable connection and remote control.
Pushing boundaries with technology
Equipped with more high-tech devices
Specification
|
GO2 AIR |
GO2 PRO |
GO2 X |
GO2 EDU *A variety of configurations are available, please contact us for details |
GO2 EDU PLUS *A variety of configurations are available, please contact us for details |
|
| Dimension - Standing | 70x31x40cm | 70x31x40cm | 70x31x40cm | 70x31x40cm | 70x31x40cm |
| Dimension - Crouching | 76x31x20cm | 76x31x20cm | 76x31x20cm | 76x31x20cm | 76x31x20cm |
| Weight (with battery) | About 15kg | About 15kg | About 15kg | About 15kg | About 15kg |
| Material |
Aluminium alloy + High strength engineering plastic |
Aluminium alloy + High strength engineering plastic |
Aluminium alloy + High strength engineering plastic |
Aluminium alloy + High strength engineering plastic |
Aluminium alloy + High strength engineering plastic |
| Voltage | 28V~33.6V | 28V~33.6V | 28V~33.6V | 28V~33.6V | 28V~33.6V |
| Peaking capacity | About 3000W | About 3000W | About 3000W | About 3000W | About 3000W |
| Payload | ≈7kg
MAX ~ 10kg |
≈8kg
MAX ~ 10kg |
≈8kg
MAX ~ 10kg |
≈8kg
MAX ~ 12kg |
≈8kg
MAX ~ 12kg |
| Speed | 0 ~ 2.5m/s | 0 ~ 3.5m/s | 0 ~ 3.5m/s |
0 ~ 3.7m/s MAX ~ 5m/s |
0 ~ 3.7m/s MAX ~ 5m/s |
| Max Climb Drop Height | About 15cm | About 16cm | About 16cm | About 16cm | About 16cm |
| Max Climb Angle | 30° | 40° | 40° | 40° | 40° |
| Basic Computing Power | ○ | 8-core High-performance CPU | 8-core High-performance CPU | 8-core High-performance CPU | 8-core High-performance CPU |
| Max Torque[1] | ○ | About 45N.m | About 45N.m | About 45N.m | About 45N.m |
| Aluminum knee joint motor | 12 set | 12 set | 12 set | 12 set | 12 set |
| Range of Motion |
body：-48~48° thigh：-200°~90° shank：-156°~-48° |
body：-48~48° thigh：-200°~90° shank：-156°~-48° |
body：-48~48° thigh：-200°~90° shank：-156°~-48° |
body：-48~48° thigh：-200°~90° shank：-156°~-48° |
body：-48~48° thigh：-200°~90° shank：-156°~-48° |
| Intra-joint circuit (knee) | ● | ● | ● | ● | ● |
| Joint Heat Pipe Cooler | ● | ● | ● | ● | ● |
| Super-wide-angle 3D LIDAR | ● | ● | ● | ● | ● |
| Wireless Vector Positioning Tracking Module | ○ | ● | ● | ● | ● |
| HD Wide-angle Camera | ● | ● | ● | ● | ● |
| Foot-end force sensor | ○ | ○ | ○ | ○ | ○ |
| Basic Action | ● | ● | ● | ● | ● |
| Auto-scaling strap | ○ | ● | ● | ○ | ○ |
| Upgraded Intelligent OTA | ● | ● | ● | ● | ● |
| RTT 2.0 (image transmission) | ● | ● | ● | ● | ● |
| Graphical programme | ● | ● | ● | ● | ● |
| Front lamp | ● | ● | ● | ● | ● |
| WiFI6 with Dual-band | ● | ● | ● | ● | ● |
| Bluetooth 5.2/4.2/2.1 | ● | ● | ● | ● | ● |
| 4G module | ○ | ● | ● | ● | ● |
| Voice Function[2] | ○ | ● | ● | ● | |
| ISS 2.0 Intelligent side-follow system | ○ | ● | ● | ● | ● |
| Intelligent detection and avoidance | ● | ● | ● | ● | ● |
| Charging Pile Compatibility | ○ | ○ | ○ | ● | ● |
| Secondary development[3] | ○ | ○ |
● (computing module not included) |
● | ● |
| Manual controller | optional | optional | ● | ● | ● |
| High computing power module | ○ | ○ | ○ |
Nvidia Jetson Orin Nano 40Tops computing power |
Nvidia Jetson Orin NX 100Tops computing power |
| Smart battery |
standard (8000mAh) |
standard (8000mAh) |
standard (8000mAh) |
long endurance (15000mAh) |
long endurance (15000mAh) |
| Battery life | About 1-2h | About 1-2h | About 1-2h | About 2-4h | About 2-4h |
| Charger |
standard (33.6V 3.5A) |
standard (33.6V 3.5A) |
standard (33.6V 3.5A) |
fast charge (33.6V 9A) |
fast charge (33.6V 9A) |
| Warranty period[4] | 6 months | 12 months | 12 months | 12 months | 12 months |
NOTE:
[1] The maximum torque in the table refers to the maximum torque of the largest joint motor; the actual maximum torque varies for the 12 joint motors.
[2] Voice functions include offline voice interaction, commands, intercom and music play.
[3] For more information, please read the secondary development manual
[4]For more detailed warranty terms, please read the product warranty brochure.
[5] The above parameters may vary in different scenarios and configurations, please subject to actual situation.
[6] If any change in the appearance of the product, please refer to the actual product.
| Manufacturer | Unitree |
|---|
